12. Pit Design Scissor Parking Lift QDMY-SJG

Name: 12 Pit Design Scissor Parking Lift QDMYSJG
Brand: QDMY
Price: 4000 USD

Brand Name : QDMY

Model Number : QDMY-SJG

Certification : ISO & CE

Place of Origin : Qingdao, China

MOQ : 1-3 Sets

Price : $4000-5500/ per car space

Payment Terms : 30%TT in advance, 70%TT before shipping, , L/C, Western Union, MoneyGram

Supply Ability : 100 Sets/month

Delivery Time : 20-30 days

Packaging Details : Standard Export Package

Contact Now

Product Specifications:

Brand Name	STMY
Model No.	QDMY-SJG 1 level above ground, 1 level underground in a pit
Type	Pit design scissor parking lift for 2 cars
Mode of Operations	Manual buttons/Keys
Car Capacity	≤2000kgs; 3000kg; 3500kg (Customized)
Mode of drive	Hydraulic
Car Size (L×W×H)	5000mm×1850mm×1550mm 5000mm×1850mm×2050mm; (Customized)
Platform Size (LxW)	5500mm x 2800mm (Customized)
Lifting Height	2200mm (Customized)
Safeguard device	Whole protection and anti-falling hook device
Lifting Speed	4-6m/min
Stop at any height	Yes, can be set
Work Noise	< 60dB ( A )
Electricity	220-415V (Customized for different country)
Motor Power	5.5-7.5KW
Maximum Working Pressure	16 MPa
HS Code	84289020
Surface Treatment	High-grade anti-corrosion paint
Color	Red, Blue, Grey, Yellow etc. (customized according to user demand )
Certification	ISO9001 and CE

Actuating Device:
Hydraulic Pump + Cylinder + Steel Rope + Car Loading Platform

Working Principle:
This pit design scissor parking lift is designed for 2 cars. Usually, the bottom level car is underground in a pit, the upper level car is above ground. The two car spaces are united as a whole unit and lifted up and down together, when the car platform is lifted to the ground level, the user can pick or park his car easily.

Characteristics:

Take full use of land to raise more parking spaces;
Reliable hydraulic drive modes;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Simple operated with manual buttons and keys;
Optional color can be easily in harmony with surrounding environment;
The top level may be decorated with grass or floor tiles to harmony with surrounding building.
No influence to building sharing light

Online Video Show:
https://youtu.be/vTbBz_gM3pI

Pictures:
12. Pit Design Scissor Parking Lift QDMY-SJG

Sample Drawings:

Remarks:

1. There is no standard drawings for this product, all size, lifting weight and traveling height are customized.

2. This system can be customized to park 2 or 3 cars.

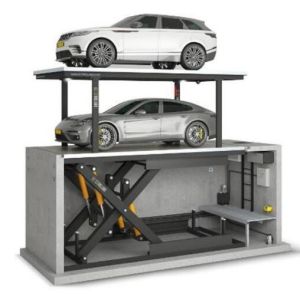

Buy cheap 12. Pit Design Scissor Parking Lift QDMY-SJG product
